Cabinet

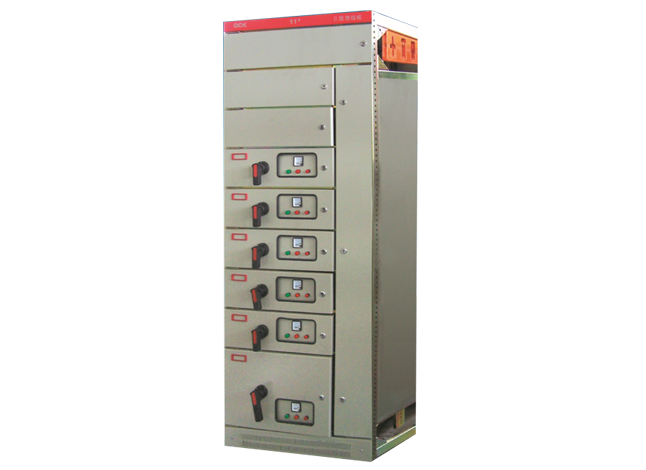

Low voltage cabinet -GCK

GCK low-voltage AC switchgear conforms to the GB7251.1\JB/T9661\IEC439-1 standard requirements, suitable for rated voltage 380~660V, 50 ~ 60Hz AC three-phase power system, as a distribution, motor control and reactive power compensation, according to the different needs can be designed into a drawer type and fixed type hybrid system, the indoor use.

Success Case +

中國人民解放軍66296(新華區友誼北大街70號)小區居民用電新建 石家莊金正房地產開發有限公司(橋東區)小區居民用電新建 石家莊市橋西區住房保障局(紅河小區)小區居民用電新建工程 石家莊鴻名發地產開發有限公司(翟營大街西躍進路南金剛生活區) 河北宇辰房地產開發有限公司(1#地塊、2#地塊、回遷區)小區居民 河北保利房地產開發有限公司(保利花園E區)小區居民用戶新建工 張承承德段機電六標段-平頂山 沈陽公用國際酒店新建10KV變電所 恒基碧桂園金石灘小區供電工程 北京金地惠達房地產房山區長陽鎮理工大學站3號地、5號地項目 國家玉米、小麥品種標準樣品庫及區域試驗站科研樓工程 華晨寶馬汽車有限公司發動機工廠鑄造車間機電施工總承包 寧夏石嘴山惠農100MW并網光伏發電項目 交通銀行股份有限公司遼寧省分行辦公樓配電 10KV沈陽市第二熱力高官臺鍋爐變電所新建工程 河北華石石家莊熱電有限公司4*410t/h鍋爐脫硝改造工程 彰武五洲豐肥料有限公司(二期)10KV電源工程 。。。
Certifications

Product description

GCK low-voltage AC switchgear conforms to the GB7251.1\JB/T9661\IEC439-1 standard requirements, suitable for rated voltage 380~660V, 50 ~ 60Hz AC three-phase power system, as a distribution, motor control and reactive power compensation, according to the different needs can be designed into a drawer type and fixed type hybrid system, the indoor use.

technical parameter

Main circuit rated voltage V Exchange 380, 660
Auxiliary circuit rated voltage V AC 220, 380 DC 110, 220
Rated frequency HZ 50(60)
Rated insulation voltage V 660(1000)
Rated current A ≤5000
Rated current of vertical busbar A 630、1000
Short time withstand current of horizontal bus KA/Is 50、80、100
Peak withstand current of horizontal busbar KA/Is 105、176、220
Power frequency test V/min Main circuit 2500
Auxiliary circuit 1760
a bus or bus bar Three-phase four wire system A、B、C、PEN
Three-phase five wire system A、B、C、N、PE
The main circuit connector A 250、400
The control circuit of A connector 10、20
    IP30、IP40
Showcase
